POWER AMPLIFIER
Description
CAQ8009T is an 10W(P3dB) unmatched GaN power amplifier. It operates from DC to 8GHz with 12 volt rail, offers a general purpose, broadband, high power and high efficiency wireless pulse and CW communication application.
Download
Key Features
| ·DC– 8GHz
|
| ·Operating Drain Voltage: +12V
|
| ·12dB linear Gain @5.8GHz
|
| ·40.2dBm CW Peak Power
|
| ·65% Drain Efficiency @P3dB_40dBm
|
| ·4x4.5mmmm DFN package(MSL3 | 260℃ per JEDEC J-STD-020)
|
| ·ESD Level: HBM TBD ; CDM TBD
|
| ·ROHS compatible
|
|
Specification
| Parameter Conditions Min Typ Max Unit
|
| Frequency 5800 MHz
|
| Output P3dB 40 40.5 dBm
|
| Gain @ small signal 12 dB
|
| Gain @ 40dBm 9 dB
|
| Drain efficiency @P3dB 65 %
|
|
Applications
-
3GPP 4G LTE/5G NR massive MIMO basestation
-
Driver amplifier for micro-base and macro-baseStations
-
Active antenna array
-
Pico/Small Cell
-
Test Instrumentation
-
Industrial, scientific, and medical
-
Wideband amplifiers

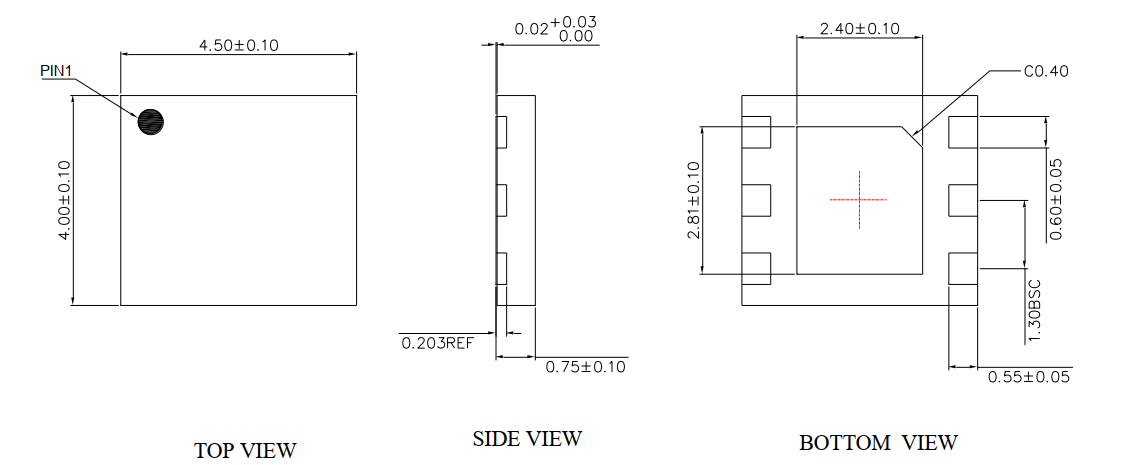

Outline Drawing

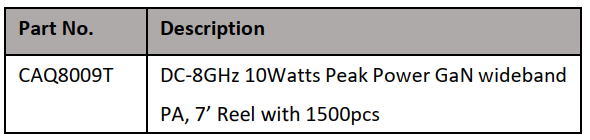

Ordering Information
