POWER AMPLIFIER
Description
CAQ8008L is an 10W(P3dB) unmatched GaN power amplifier. It operates from DC to 4GHz with 28 volt rail, offers a general purpose, broadband, high power and high efficiency wireless pulse and CW communication application.
Download
Key Features
| ·DC– 4GHz
|
| ·Operating Drain Voltage: +28V
|
| ·18dB linear Gain @39dBm | 3.3GHz
|
| ·40.5dBm Peak Power
|
| ·63% Drain Efficiency @P3dB
|
| ·4x4.5mmmm DFN package(MSL3 | 260℃ per JEDEC J-STD-020)
|
| ·ESD Level: HBM TBD ; CDM TBD
|
| ·ROHS compatible
|
|
Specification
| Parameter Conditions Min Typ Max Unit
|
| Frequency 3300 MHz
|
| Output P3dB 40 40.5 dBm
|
| Gain @ small signal 20 dB
|
| Gain @ 39dBm 18 dB
|
| Drain efficiency @P3dB 63 %
|
|
Applications
-
3GPP 4G LTE/5G NR massive MIMO basestation
-
Driver amplifier for micro-base and macro-baseStations
-
Active antenna array
-
Pico/Small Cell
-
Test Instrumentation
-
Industrial, scientific, and medical
-
Wideband amplifiers

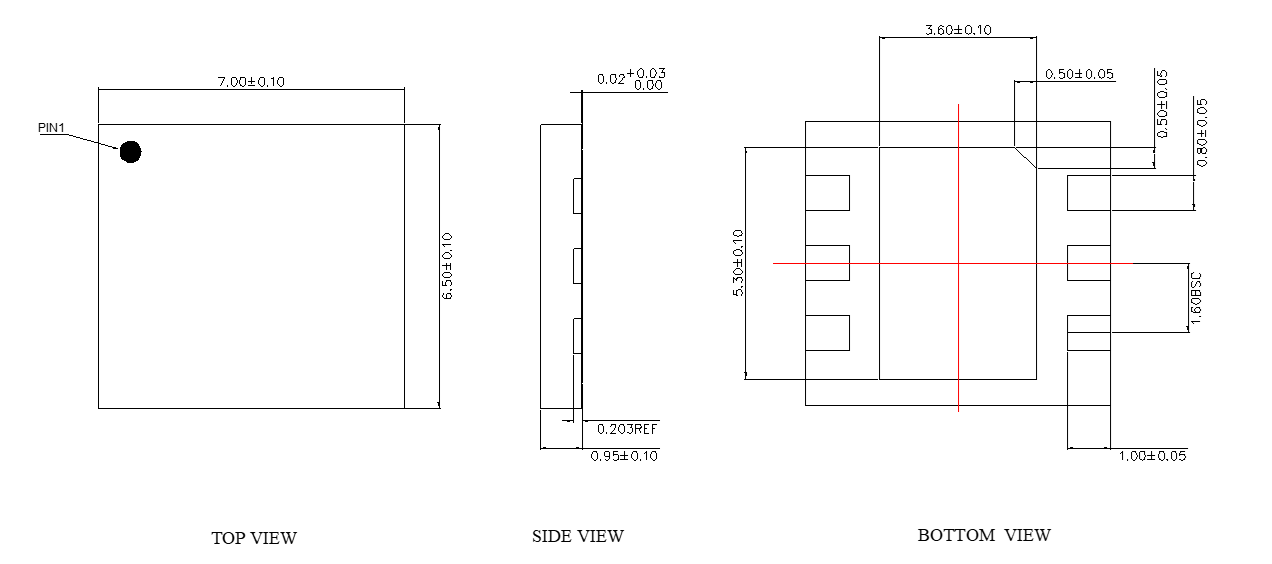

Outline Drawing

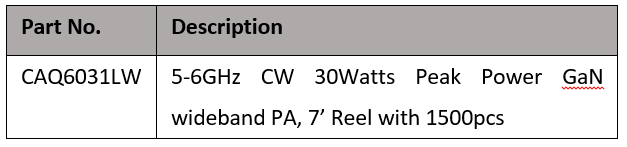

Ordering Information
