CAQ6030L is a 30W(P3dB) unmatched GaN power amplifier. It operates from 5 to 6GHz with 28 volt rail, offers a general purpose, broadband, high power and high efficiency wireless pulse and CW communication application.

·5– 6GHz
·Operating Drain Voltage: +28V
·14dB linear Gain @5.4GHz
·Above 45dBm CW Peak Power
·60% Drain Efficiency @Psat

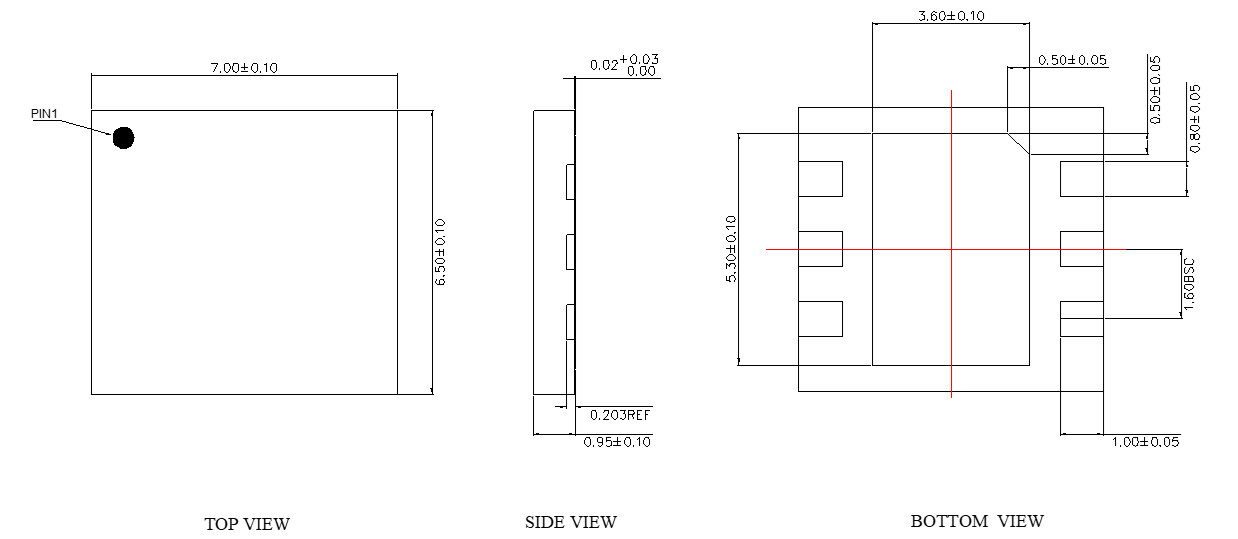

·7x6.5mm DFN package(MSL3	260℃ per JEDEC J-STD-020)
·ESD Level: HBM TBD ; CDM TBD
·ROHS compatible

Parameter Conditions Min Typ Max Unit

Frequency 5400 MHz

Output P3dB +45 dBm

Gain @ P3dB 13 dB

Drain efficiency @P3dB 60 %

• 3GPP 4G LTE/5G NR massive MIMO basestation
• Driver amplifier for micro-base and macro-base　Stations
• Active antenna array
• Pico/Small Cell
• Test Instrumentation
• Industrial, scientific, and medical
• Wideband amplifiers
