CAQ1215 is a 15W GaN power amplifier with input matching circuits. It operates DC-1700MHz with 28 volts rail, offers a general purpose, broadband, high power level and high efficiency wireless communication application.

·DC – 1.7GHz
·Operating Drain Voltage: +28V
·19dB linear Gain @1.2GHz
·15W Peak Power @1.2GHz
·58% Drain Efficiency @PsatdB	1.2GHz

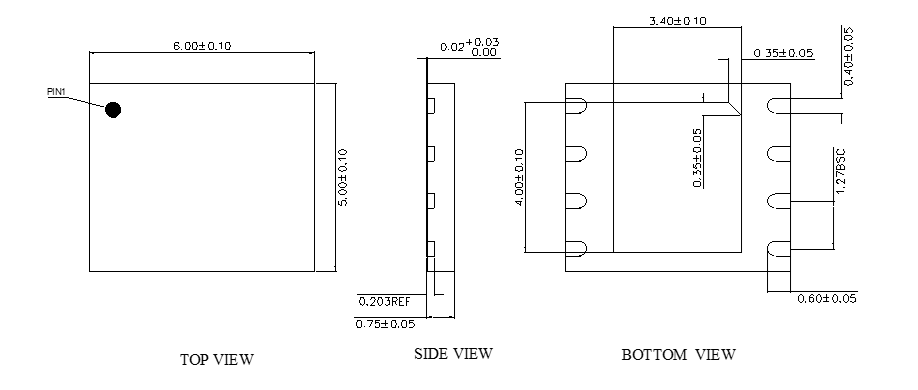

·5x6mm DFN plastic package
·ROHS compatible

Parameter Conditions Min Typ Max Unit

Frequency DC 1200 1480 MHz

Output P3dB CW 41.8 dBm

Gain@ small signal CW 19 dB

Drain efficiency@Psat CW 58 %

• Radio communication
• Driver amplifier for micro-base and macro-base Stations
• Active antenna array
• Pico/Small Cell
• Test Instrumentation
• Industrial, scientific, and medical
• Wideband amplifiers
